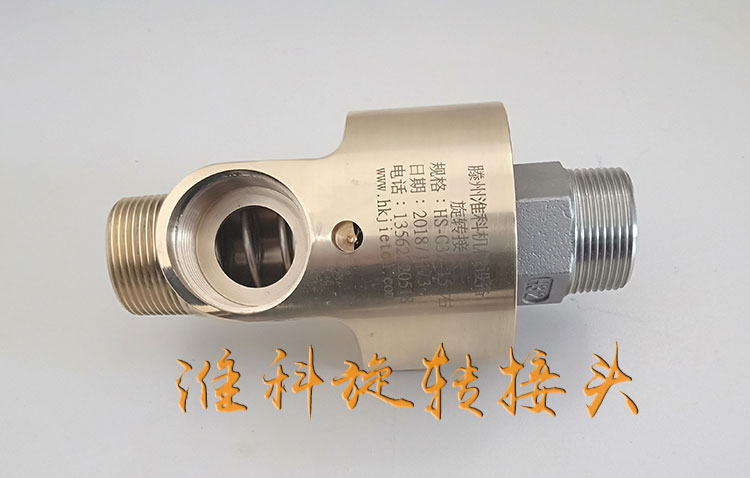

HS型旋转接头特点：
壳体为优质黄铜，空心轴为不锈钢304，密封件为合金钢和英国摩根密封件。

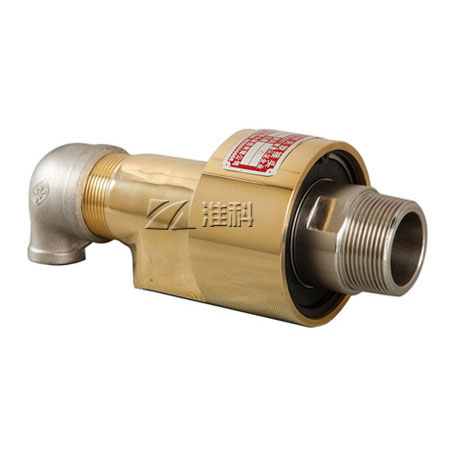

通冷却水旋转接头（HS-X型） 双向流通内管旋转式——螺纹连接
|

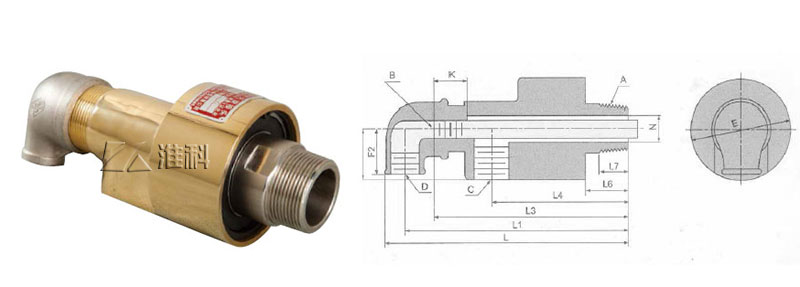

规格 |
型号 |
A |
B |
C |
D |
E |
F1 |
F2 |
K |
L |
L1 |
L3 |
L4 |
L6 |
L7 |
N |
|
|
15 |
HS-X15-6 |
R1/2 |
10 |
Rc1/2 |
Rc1/2 |
55 |
28 |
25 |
15 |
147 |
135 |
125 |
90 |
30 |
17 |
12 |
|
|
20 |
HS-X20-8 |
R3/4 |
12 |
Rc3/4 |
Rc1/2 |
62 |
31 |
30 |
32 |
170 |
155 |
140 |
95 |
30 |
20 |
16 |
|
|
25 |
HS-X25-10 |
R1 |
16 |
Rc3/4 |
Rc1/2 |
74 |
37 |
33 |
26 |
175 |
160 |
145 |
103 |
33 |
20 |
20 |
|
|
32 |
HS-X32-15 |
R1-1/4 |
20 |
Rc1-1/4 |
Rc1/2 |
90 |
45 |
38 |
32 |
211 |
196 |
182 |
128 |
42 |
25 |
30 |
|
|
40 |
HS-X40-20 |
R1-1/2 |
25 |
Rc1-1/2 |
Rc3/4 |
95 |
48 |
43 |
36 |
232 |
210 |
185 |
130 |
40 |
25 |
36 |
|
|
50 |
HS-X50-25 |
R2 |
31 |
Rc1-1/2 |
Rc1 |
122 |
60 |
51 |
46 |
300 |
278 |
255 |
182 |
60 |
35 |
48 |
|
|
65 |
HS-X65-32 |
R2-1/2 |
40 |
Rc2 |
Rc1-1/4 |
156 |
78 |
62 |
50 |
350 |
325 |
295 |
211 |
68 |
40 |
62 |
|
|
80 |
HS-X80-40 |
R3 |
46 |
Rc2-1/2 |
Rc1-1/2 |
160 |
80 |
70 |
50 |
383 |
353 |
286 |
231 |
90 |
35 |
75 |
|
